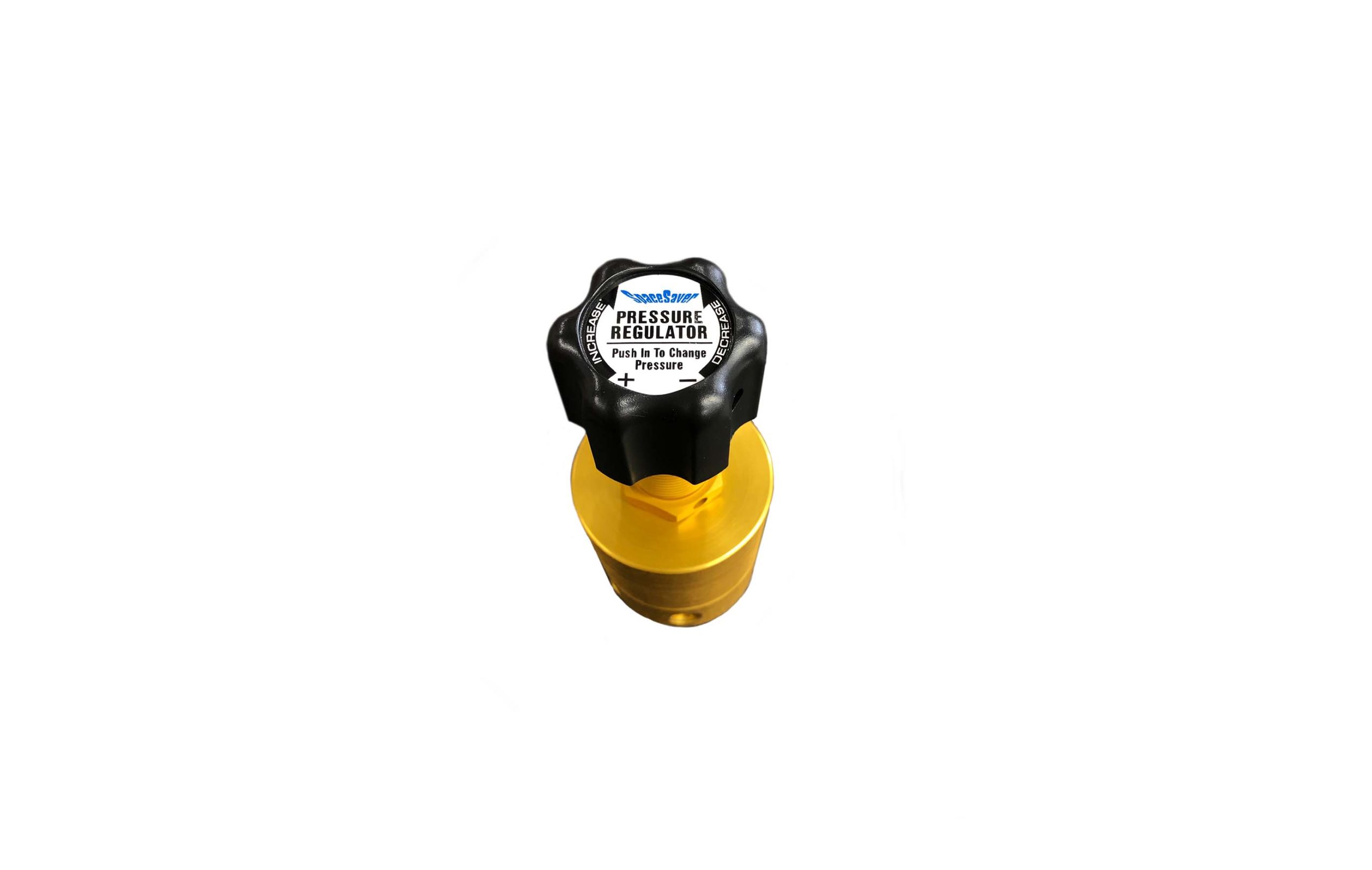

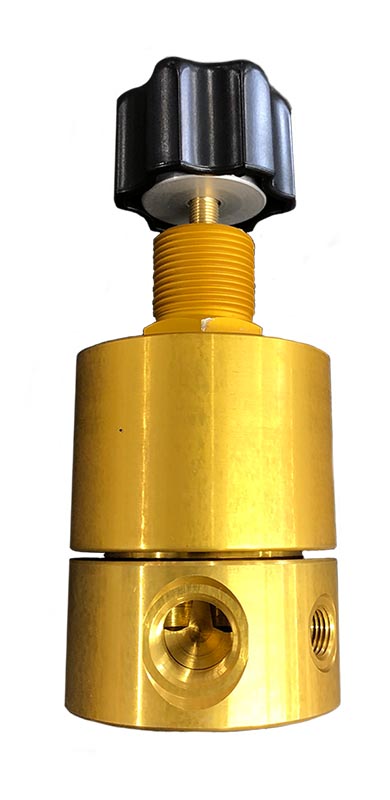

Low Pressure Regulator

Low Pressure Regulator

Low Pressure Regulator is designed to be equipped to an AccuFlo Air Control Panel to regulate low pressure air.

Specifications:

  • High Flow Reducing Regulator
  • Hand/Spring Loaded
  • 1/2 in. NPT outlet
  • 1/4 in. NPT inlet
  • 0 to 400 psi out

Item # 873-400, 873 High Flow Reducing Regulators

Features

Specifications

 Specifications

Series Designation

 873 Series

Type

 High Flow Reducing Regulator

Hand Loaded/Operated or Dome/Air Operated

 Hand/Spring Loaded

Maximum Rated Pressure

 6000 psi

Outlet Pressure Range

 0-400 psi

Outlet Pressure Rating

 6000 psi

Inlet Port Size

 2 ea 1/4 in. FNPT (One Inlet, One Gauge)

Outlet Port Size

 1 ea 1/4 in. FNPT (Gauge), 1 ea 1/2 in. FNPT (Outlet)

Flow Coefficient (Cv)

 0.8 (equals 0.23 in. orifice)

Outlet Pressure Variations with Inlet Pressure Variations

View

 10 psi rise/1000 psi inlet drop

Leakage

 Bubble Tight

Weight

 1300 g

Overall Length

 6.5 Inch

Round Diameter

 3 Inch

Minimum Temperature

 -15 ºF

Body Material

 Anodized Aluminum

Internal Materials

 Anodized Aluminum
Brass
Stainless

Seal Materials

 Kel-F
Viton

Repair Kit/Service Items

 979-400

Accessories

 Mount Nuts: P/N 952 (Two Required)
